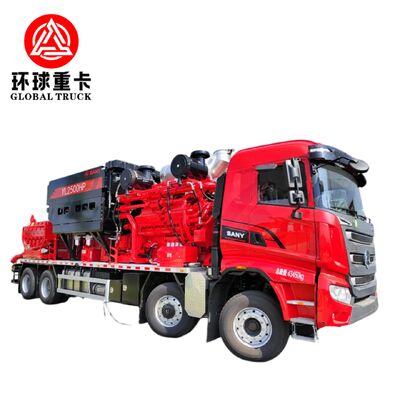

Heavy Duty 8×6 Fracturing Sand Tanker with Euro 6 Emission Standard and 1697L/Min Maximum Plunger Pump Displacement

Heavy Duty 8×6 Fracturing Sand Tanker with Euro 6 Emission Standard and 1697L/Min Maximum Plunger Pump Displacement

  • Heavy Duty 8×6 Fracturing Sand Tanker with Euro 6 Emission Standard and 1697L/Min Maximum Plunger Pump Displacement
  • Heavy Duty 8×6 Fracturing Sand Tanker with Euro 6 Emission Standard and 1697L/Min Maximum Plunger Pump Displacement
  • Heavy Duty 8×6 Fracturing Sand Tanker with Euro 6 Emission Standard and 1697L/Min Maximum Plunger Pump Displacement
  • Heavy Duty 8×6 Fracturing Sand Tanker with Euro 6 Emission Standard and 1697L/Min Maximum Plunger Pump Displacement
Heavy Duty 8×6 Fracturing Sand Tanker with Euro 6 Emission Standard and 1697L/Min Maximum Plunger Pump Displacement
Ürün ayrıntıları:
Menşe yeri: Çin
Marka adı: sany
Sertifika: CE
Model numarası: Petrol Kırma Kamyonu
Ödeme & teslimat koşulları:
Min sipariş miktarı: 1 adet
Fiyat: Anlaşılabilir
Ambalaj bilgileri: Çıplak
Teslim süresi: 35 iş günü
Ödeme koşulları: L/C,T/T
Yetenek temini: 50 Adet / Ay
İletişim
Detaylı ürün tanımı
Model NO.: XYLC2500 Tahrik Tekerleği: 8×6
beygir gücü: ＞ 450hp Güç: Dizel
Lastik Tasarımı: Tüpsüz Emisyon Standardı: Euro 2
Dingil açıklığı: 1800+4575+1400 Maksimum Pistonlu Pompa Deplasmanı: 1697L/dak
Vurgulamak:

8×6 Drive Configuration Fracturing Sand Tanker

,

Euro 6 Emission Standard Frac Sand Tanker

,

1697L/Min Maximum Plunger Pump Displacement Fracturing Sand Tank Truck

Heavy Duty 8×4 Fracturing Sand Tanker
SANY 8×6 Oilfield Fracturing Mortar Tank Truck (Diesel Engine, Manual Transmission, Euro 6 - New Condition)
Product Overview
The SANY 8×6 Oilfield Fracturing Mortar Tank Truck is a high-performance diesel vehicle engineered for unconventional oil and gas field operations. It integrates a reinforced 8×6 off-road chassis, Euro 6 diesel engine, and PTO-driven hydraulic pumping system for precise delivery of fracturing fluids, cement slurry, and chemical additives. Designed for shale, tight oil, and deep horizontal wells, this truck ensures safe, efficient, and reliable fluid handling under demanding oilfield conditions.
Chassis & Drive System Specifications
Drive Layout 8×6 heavy-duty oilfield chassis
Engine Power 460-500 HP, Euro 6 diesel
Transmission 10-speed manual gearbox
PTO System Engine-mounted power take-off for hydraulic pump
Axles Reinforced oilfield-grade
Suspension Heavy-duty leaf spring with optional hydraulic dampers
Tires Off-road radial oilfield tires
Maximum Speed 70-75 km/h
Operational Terrain Desert, plateau, mountainous, and muddy oilfield roads
Mortar Tank & Fluid Handling
  • Tank Capacity: 12-20 m³ (customizable)
  • Tank Material: High-strength carbon steel with epoxy lining
  • Tank Structure: Cylindrical or rectangular, with anti-surge baffles
  • Agitator: Diesel or hydraulic-powered for uniform slurry mixing
  • Pump: PTO-driven high-pressure hydraulic pump
  • Maximum Flow: Adjustable according to well requirements
  • Discharge Valves: Pneumatic or hydraulic, bottom and side
  • Access & Safety: Anti-slip ladder, sealed inspection hatch, emergency vent
Key Operational Features
  • High-pressure slurry delivery for hydraulic fracturing and cementing
  • Diesel engine allows autonomous operation without external power
  • Manual transmission enables precise torque control on rugged terrain
  • Reinforced 8×6 chassis provides stability and off-road mobility
  • Euro 6 compliance ensures environmentally responsible operation
Safety Systems
  • Emergency stop switches (inside and outside cabin)
  • Overpressure relief valve on tank and piping
  • Hydraulic overload protection
  • Anti-overflow system
  • Grounding and bonding system for static electricity prevention
  • Fire suppression equipment
Applications
  • Hydraulic fracturing in shale, tight oil, and unconventional reservoirs
  • Cementing and well plugging operations
  • Sand, chemical, and slurry injection
  • Multi-stage horizontal and vertical well stimulation
  • Oilfield construction and maintenance tasks
Optional Upgrades
  • Intelligent remote monitoring and control system
  • Data acquisition and recording module
  • Winterization package for cold climates
  • High-temperature desert adaptation package
  • Stainless steel piping for corrosive fluids
  • Noise-reduction and operator comfort upgrades
  • Multi-compartment tank for simultaneous fluid delivery
Frequently Asked Questions
What fluids can this truck handle?
Fracturing fluids, cement slurry, sand, and chemical slurries.
Can it operate in extreme temperatures?
Yes, optional winterization or desert adaptation packages are available.
How is the slurry delivered to wells?
Through a PTO-driven high-pressure hydraulic pump with adjustable flow.
Can the tank be customized?
Yes, both capacity and internal configuration can be tailored.
Why choose an 8×6 chassis?
It provides superior stability, payload capacity, and off-road mobility in oilfield operations.
SANY 8×6 Oilfield Fracturing Mortar Tank Truck in operational environment
