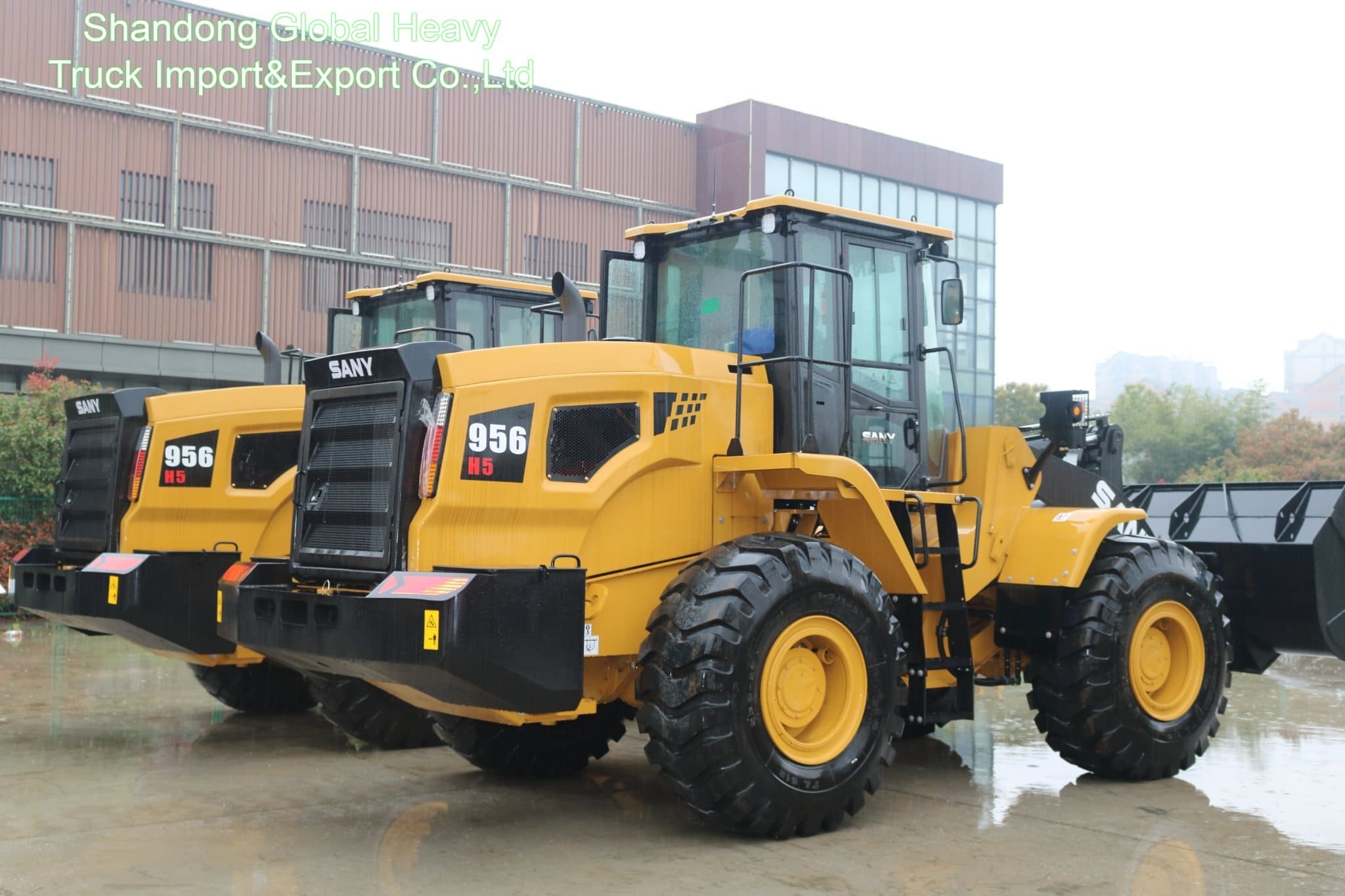

SANY SYL956H5 5 Ton Wheel Loader with 3m3 Bucket Capacity and 164kw Power for Construction and Mining

SANY SYL956H5 5 Ton Wheel Loader with 3m3 Bucket Capacity and 164kw Power for Construction and Mining

  • SANY SYL956H5 5 Ton Wheel Loader with 3m3 Bucket Capacity and 164kw Power for Construction and Mining
  • SANY SYL956H5 5 Ton Wheel Loader with 3m3 Bucket Capacity and 164kw Power for Construction and Mining
  • SANY SYL956H5 5 Ton Wheel Loader with 3m3 Bucket Capacity and 164kw Power for Construction and Mining
  • SANY SYL956H5 5 Ton Wheel Loader with 3m3 Bucket Capacity and 164kw Power for Construction and Mining
SANY SYL956H5 5 Ton Wheel Loader with 3m3 Bucket Capacity and 164kw Power for Construction and Mining
Ürün ayrıntıları:
Menşe yeri: Çin
Marka adı: SANY
Sertifika: iso/ccc
Model numarası: 956H5
Ödeme & teslimat koşulları:
Min sipariş miktarı: 1 adet
Fiyat: Anlaşılabilir
Ambalaj bilgileri: Çıplak
Teslim süresi: 30-45 iş günü
Ödeme koşulları: L/C,T/T
Yetenek temini: Ayda 400 Birim/Birim
İletişim
Detaylı ürün tanımı
Model NO.: SANY 956H5 Nominal Yük: 5 ton
Bulaşma: Hidrolik Yükleme ve Boşaltma Modu: Önden Boşaltma
Yürüyüş Modu: Tekerlekli Tip: Küçük yükleyici
Kova kapasitesi: 3m3 Güç: 164 kw
Boyut: 8106*2750*3500mm Tekerlek tabanı: 3300mm

SANY SYL956H5 - 5 Ton Wheel Loader | Robust Payload for Construction & Mining
Product Overview

The SANY SYL956H5 is a 5-ton class wheel loader that has earned a reputation for punching above its weight class. Many operators report that this 5-ton machine delivers performance comparable to 6-ton loaders from other brands.

Powered by a high-efficiency diesel engine with 164 kW of rated power, the SYL956H5 combines high breakout force, fast cycle times, and exceptional fuel economy. It is built for demanding applications including mining, quarry operations, construction sites, sand and gravel yards, ports, and bulk material handling.

With a standard bucket capacity of 2.7 - 4.0 m³ and a rated load of 5,000 kg (5 tons), this loader is a true workhorse. Its 6-ton platform frame and heavy-duty oscillating axle provide the structural integrity needed for long service life in harsh conditions.

Made in China — SANY is one of the world's largest construction equipment manufacturers, with a global reputation for innovation, reliability, and value.

Key Specifications
Parameter Details
Model SANY SYL956H5
Condition Brand new — in stock
Rated Load (Payload) 5,000 kg (5 tons)
Bucket Capacity 2.7 - 4.0 m³ (standard 3.0 m³)
Operating Weight 17,100 - 17,200 kg
Engine Power 164 kW @ 2,200 rpm (approx. 220 HP)
Breakout Force High — designed for heavy digging
Max Dumping Height 3,118 ± 50 mm
Unloading Distance 1,140 ± 50 mm
Max Travel Speed 40 km/h
Turning Radius (outside) 5,850 mm
Overall Length (with bucket) 8,016 ± 50 mm
Overall Height 3,501 ± 50 mm
Wheelbase 3,200 mm
Ground Clearance 432 ± 10 mm
Fuel Tank Capacity 300 L
Hydraulic Tank Capacity 220 L
Emission Standard Tier 3 / China III (higher standards on request)
Warranty 12 months or 2,000 hours
Key Features & Advantages
  • Performance comparable to 6-ton loaders in a 5-ton class machine
  • High-efficiency diesel engine with 164 kW rated power
  • Exceptional fuel economy with fast cycle times
  • Robust 6-ton platform frame for enhanced durability
  • Heavy-duty oscillating axle for superior structural integrity
  • High breakout force designed for heavy digging applications
  • Versatile operation in mining, quarry, construction, and material handling
  • Comprehensive warranty coverage: 12 months or 2,000 hours
