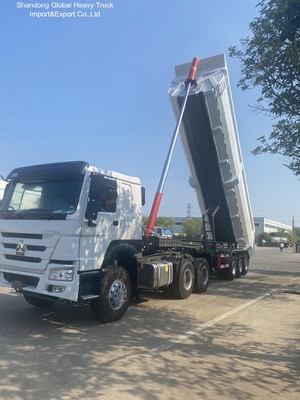

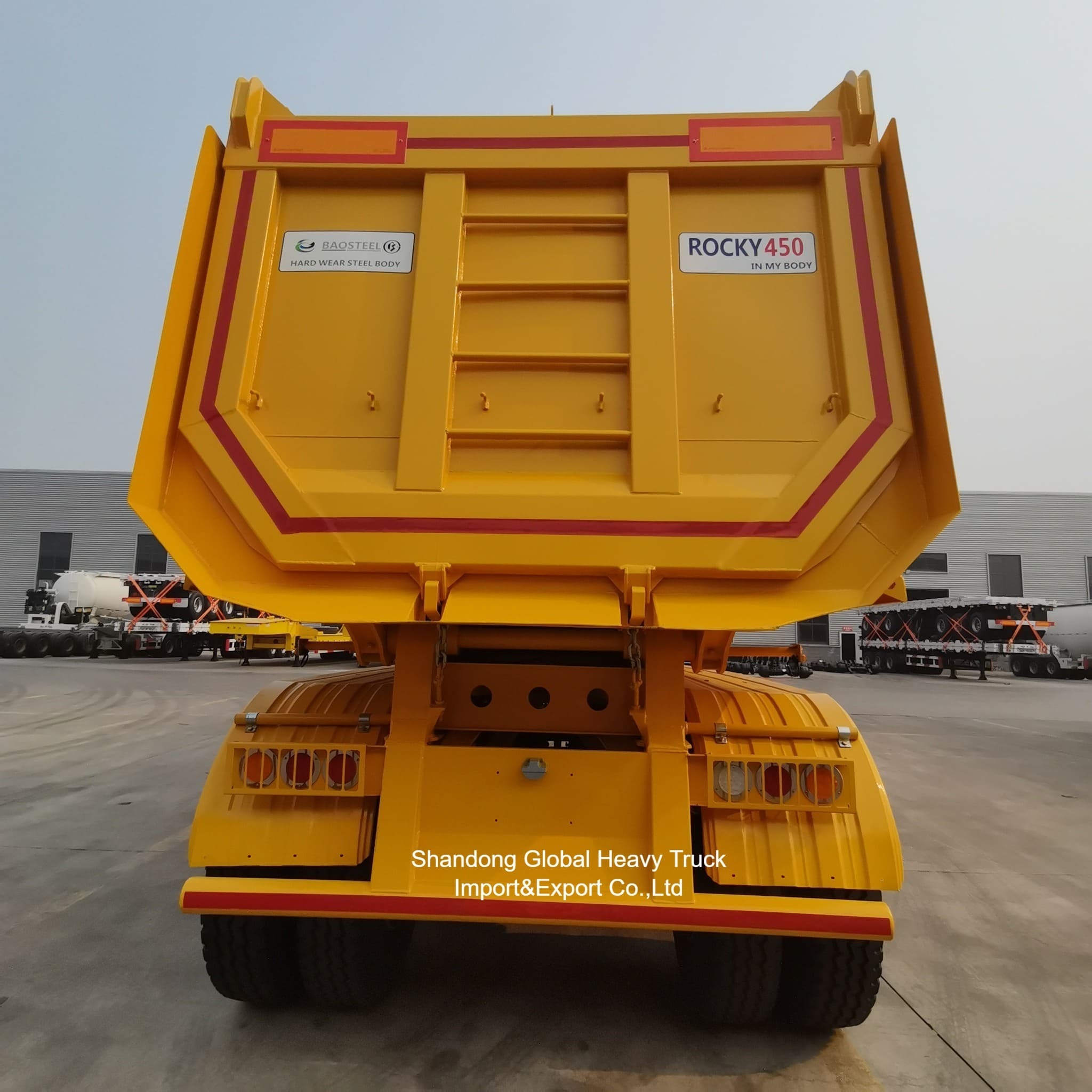

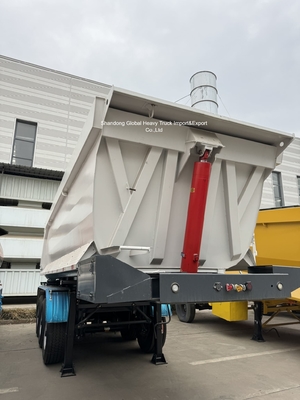

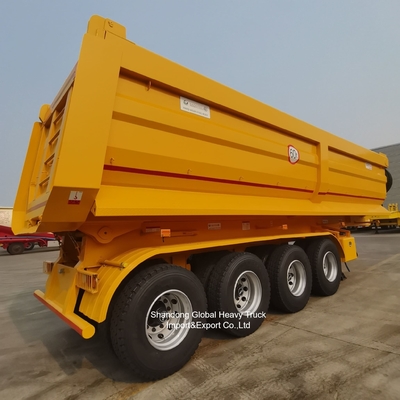

4 Axles Hydraulic Dump Semi Trailer with Q345B High-Tensile Steel and 80-100 Tons Payload Capacity for Heavy-Duty Transport

4 Axles Hydraulic Dump Semi Trailer with Q345B High-Tensile Steel and 80-100 Tons Payload Capacity for Heavy-Duty Transport

  • 4 Axles Hydraulic Dump Semi Trailer with Q345B High-Tensile Steel and 80-100 Tons Payload Capacity for Heavy-Duty Transport
  • 4 Axles Hydraulic Dump Semi Trailer with Q345B High-Tensile Steel and 80-100 Tons Payload Capacity for Heavy-Duty Transport
  • 4 Axles Hydraulic Dump Semi Trailer with Q345B High-Tensile Steel and 80-100 Tons Payload Capacity for Heavy-Duty Transport
  • 4 Axles Hydraulic Dump Semi Trailer with Q345B High-Tensile Steel and 80-100 Tons Payload Capacity for Heavy-Duty Transport
4 Axles Hydraulic Dump Semi Trailer with Q345B High-Tensile Steel and 80-100 Tons Payload Capacity for Heavy-Duty Transport
Ürün ayrıntıları:
Menşe yeri: ÇİN
Marka adı: sinotruk
Sertifika: iso/ccc
Model numarası: Howo
Ödeme & teslimat koşulları:
Min sipariş miktarı: 1 Birim
Fiyat: Anlaşılabilir
Ambalaj bilgileri: Çıplak
Teslim süresi: 30-45 iş günü
Ödeme koşulları: L/C, T/T
Yetenek temini: Ayda 300 birim/birim
İletişim
Detaylı ürün tanımı
Tip: Damperli römork Genel boyut: 11200X2550X3500mm
Sertifika: ECE, Gcc, CE, ISO9001, DOT, CCC, ISO/Ts16949 payanda: Jost 28ton Tek Eylem
Aks numarası: 3 İhtiyaçlara Göre Aksel Malzeme: Sert Çelik
HS kodu: 8716100000
Vurgulamak:

4 Axles Hydraulic Dump Semi Trailer

,

Q345B High-Tensile Steel Hydraulic Dump Semi Trailer

,

80-100 Tons Payload Capacity Hydraulic Dump Semi Trailer

4 Axles Rear Dumper Trailers End Tipper Truck Tractor Hydraulic Dump Semi Trailer
High-Strength Heavy-Duty Dumper Trailer for Mining and Construction Transport
Product Overview

The 4 Axles Hydraulic Rear Dumper Semi Trailer is designed for bulk material transport such as sand, gravel, coal, and construction debris. Built for African mining and infrastructure projects, this trailer combines powerful hydraulic lifting, reinforced chassis, and optimized dumping structure for maximum efficiency and durability.

Each unit is engineered with high-tensile Q345B or T700 steel, ensuring excellent wear resistance and long service life, even in rough terrains and heavy-duty work environments.

Technical Specifications
Model 4 Axles End Dumper Semi Trailer
Axles 4 x 13T or 16T FUWA / BPW brand (optional)
Payload Capacity 80-100 tons
Body Volume 45-60 cubic meters
Material Q345B high-tensile steel, 6mm floor / 4mm side
Hydraulic System HYVA or domestic brand front lifting cylinder
Dimension 10.5m-11.8m × 2.5m × 3.5m (customizable)
Suspension Mechanical heavy-duty spring suspension
Tire Options 12R22.5 / 315/80R22.5 (Triangle, Linglong, Double Coin)
Brake System WABCO dual-line air brake system
Kingpin 90# / 50# interchangeable
Landing Gear JOST or Fuwa brand
Color Custom painting available (red, yellow, or per customer request)
Main Features & Advantages
  • Powerful Hydraulic System: Imported HYVA front cylinder ensures fast and stable lifting.
  • Reinforced Frame: Extra-strong chassis for superior load-bearing and longer life.
  • Efficient Unloading: Optimized dump angle (up to 45°) for clean, fast material discharge.
  • Flexible Customization: Choose steel thickness, hydraulic brands, or axle configuration.
  • Low Maintenance Cost: Durable design reduces downtime and operating expenses.
  • Perfect for African Roads: Strong suspension and high ground clearance withstand harsh conditions.
Customer Feedback
"We bought three 4-axle tipper trailers for our mining project in Kano. The hydraulic system works smoothly, and the body is very solid."
— Abdul J., Nigeria Construction Ltd.
"Excellent performance even on rough quarry roads. Good value and reliable after-sales support."
— Makame Logistics, Tanzania
FAQ
Q1: What is the difference between end tipper and side tipper trailers?

A: End tippers unload materials backward with a front hydraulic cylinder, while side tippers unload sideways for larger areas or restricted spaces.

Q2: What is the lifting time for a full load?

A: Usually 45-60 seconds depending on the hydraulic cylinder and oil pump.

Q3: Can I choose a thicker body for mining transport?

A: Yes, for mining or stone transport, we recommend 8mm floor + 6mm side for extra durability.

Q4: What's the standard delivery time?

A: Around 25-30 working days after deposit confirmation.

Q5: Can I use it with my existing HOWO or Shacman tractor?

A: Yes, it's fully compatible with HOWO, Shacman, FAW, Sinotruk, and Dongfeng tractors.

4 Axles Hydraulic Dump Semi Trailer with Q345B High-Tensile Steel and 80-100 Tons Payload Capacity for Heavy-Duty Transport 0
